Turnkey system for characterizing and measuring UV-LEDs
UV LED Characterization and Measurement Station integrates the best of the best test equipment into an easy to use system.
UV-LED Characterization and Measurement requires a source to power the device and an optical measurement instrument to measure the device output. The complete UV LED characterization and measurement test station is a turnkey system ready to go. Any Vektrex SMU may be selected for use in the UV LED characterization and measurement test station. Key measurements include Peak Power, Irradiance, and Radiant Flux. Key operating modes include Constant Current, Single Pulse, Continuous Pulse, Differential Continuous Pulse (UV LED specific) and Dynamic Modes. Flexible triggering combined with a hardware timing system enable time-aligned SMART Measurements. Grab one point, multiple points, or a sweep. Graphically view IV and LIV curves and select the points for reference.
Specifications/ Functions
| Operating Modes to Power Devices | Single Pulse Continuous Pulse DCP (differential continuous pulse mode) |
| Charts | IV LIV |
| Measurements | |

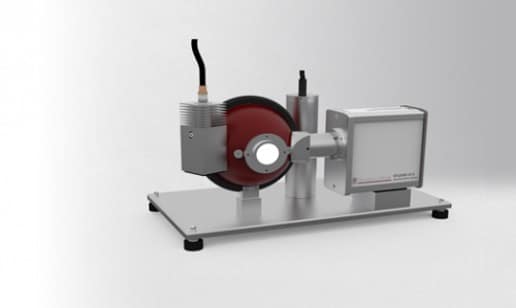

| Spectrometer | BTS2048 |
