Slope efficiency is one of the central measurements used to reveal the true electro-optical performance of semiconductor emitters. Slope efficiency measurement reveals how effectively a light-emitting device converts additional electrical drive current into additional optical output power. It is one of the most sensitive indicators of device performance, thermal behavior, and manufacturing quality for LEDs, laser diodes, VCSELs, and other semiconductor emitters.
Slope efficiency sweeps are best performed using high-speed, synchronized pulses to measure slope efficiency without thermal degradation such as those provided by Vektrex SMU models.

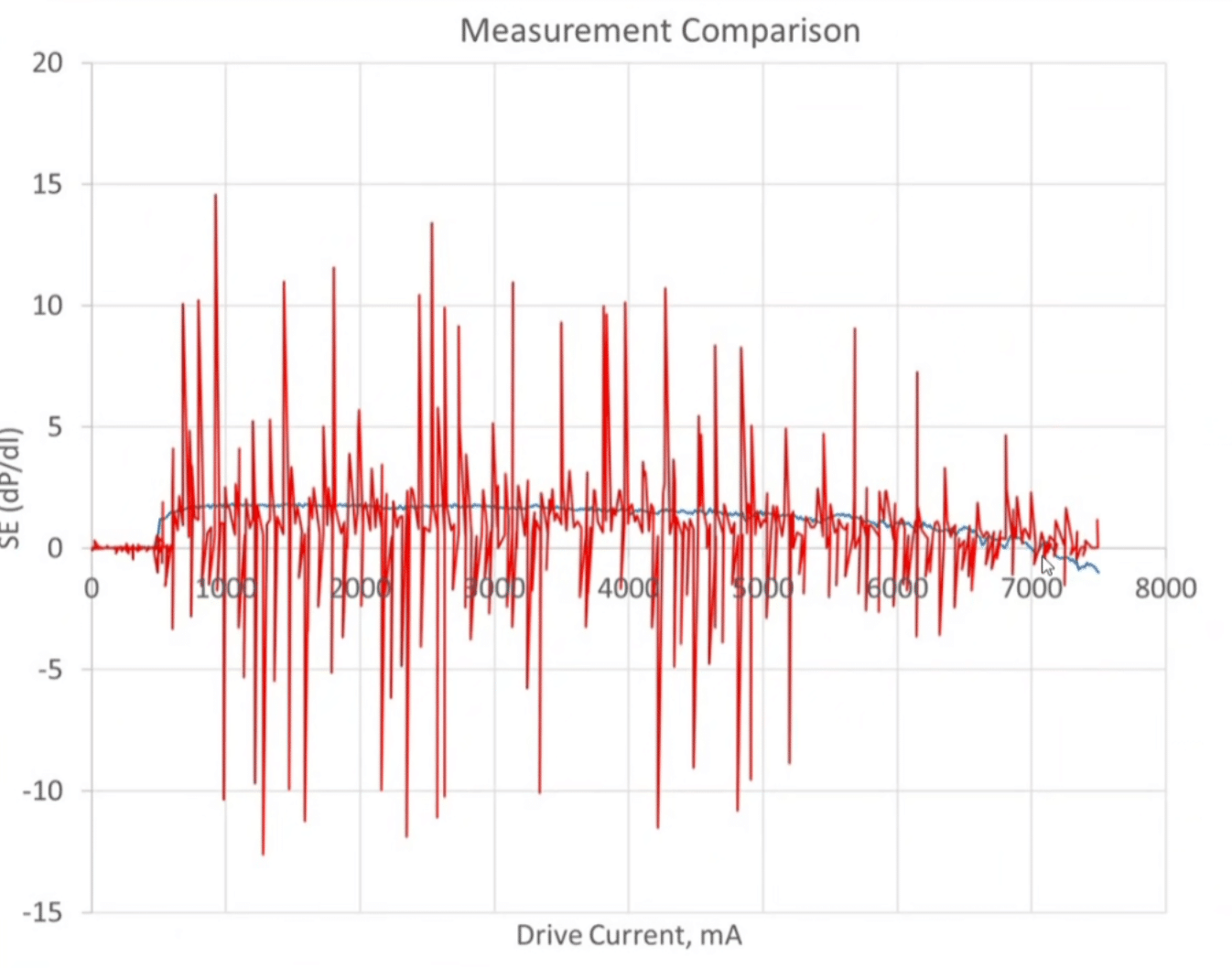

Slope Efficiency Measurement Comparison
Vektrex SMUs offer the high-speed, synchronized pulses needed to measure slope efficiency without thermal degradation.
Slope Efficiency Indicates Device Efficiency
A higher slope efficiency means the device produces more optical power for each additional milliamp of current. This directly impacts:
- Power consumption
- Heat generation
- Battery life
- System efficiency
For high-power LEDs and lasers, even small efficiency improvements can significantly reduce cooling requirements.
Slope Efficiency Detects Thermal Problems
Slope efficiency is highly sensitive to junction temperature. As the device heats:
- Optical efficiency drops
- Carrier recombination changes
- Internal losses increase
A declining slope efficiency during operation often indicates:
- Poor thermal design
- Die attach defects
- Thermal resistance problems
- Packaging issues
Slope efficiency is frequently analyzed together with junction temperature measurements.
Slope Efficiency Identifies Manufacturing Defects
Production variations often appear first in slope efficiency data.
Examples:
- Poor epitaxial growth
- Contamination
- Defective die attach
- Optical cavity defects
- Current crowding
- Damaged facets in lasers
Two devices may have similar forward voltage but very different slope efficiencies.
This makes slope efficiency valuable for:
- Binning
- Inline production screening
- Reliability prediction
- Early failure detection
Slope Efficiency is Critical for Laser Threshold Analysis
For laser diodes and VCSELs, slope efficiency above threshold is a key figure of merit. A reduction in slope efficiency can indicate:
- Optical losses
- Thermal rollover
- Degradation
- Aging
- Cavity damage
Slope Efficiency Enables Accurate Device Modeling
Slope efficiency data is used in:
- Electro-optical models
- Thermal simulations
- Reliability prediction
- Optical system design
Automotive, medical, UV curing, sensing, and telecom systems all rely on accurate slope efficiency characterization.
Use Vektrex SMUs for Slope Efficiency Measurement
For more information on using a Vektrex SMU for slope efficiency measurements, contact us. Our representatives will gladly answer your questions.
Click the button below to view our Source Measure Unit lineup.
