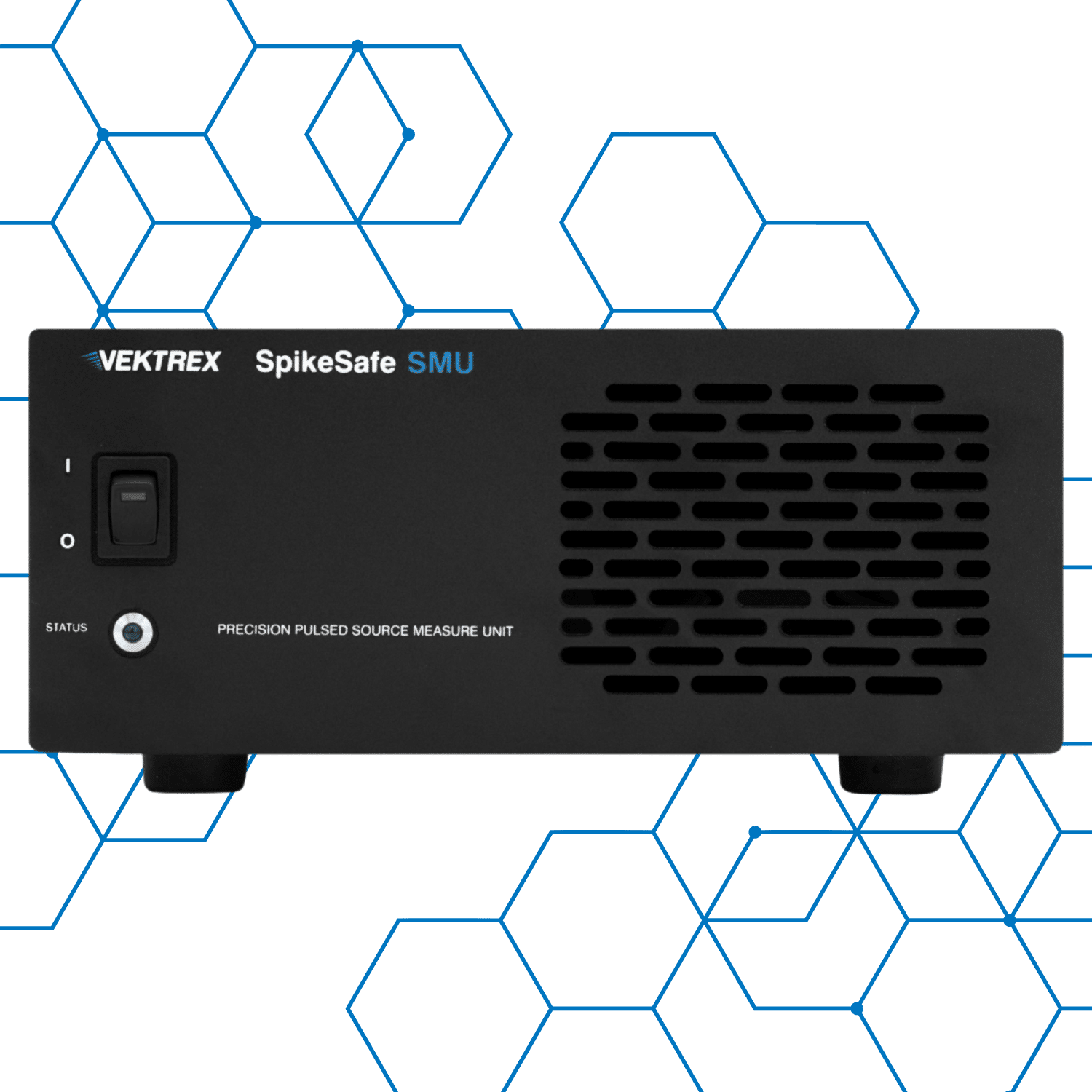

50 mA to 10 A Source Measure Units
The 50 mA to 10 A Source Measure Unit range delivers precision current sourcing in that specified range with synchronized voltage measurement for accurate device characterization across low and high-power regimes. Designed for pulsed operation, it supports microsecond-level transient response and controlled duty cycling to reduce self-heating during high-current tests. Low-noise digitization enables measurement sensitivity down to millivolt-level voltage changes and microamp-level current variations, ensuring repeatable I-V characterization of semiconductor and power devices.
Explore specifications, performance capabilities, and system configurations below.
Key Points
- Precision current sourcing from 50 mA to 10 A
- High-speed pulsed operation with microsecond-level control
- Integrated source and measure in a single system
- Synchronized voltage and current measurement during active pulses
- High measurement accuracy with stable low-noise output
- Fast transient response for dynamic device testing
- Multiple operating modes: DC, pulse, sweep, burst
- Automated control via software API integration Built-in protection for sensitive device testing
Select Your SMU Part Number (P/N)
| P/N Pulsed SMU xx = Min Pulse Width 01 µs, 10 µs, 50 µs | Max I | Max V | Max DC Output Power | Max Pulsed Power (Internal Power) | Min Pulse Width Available |
|---|---|---|---|---|---|
| PSMU-PRF-005-xx | 50 mA | 100 V | 2.5 W | 2.5 W | 10 µs |
| PSMU-PRF-05-xx | 500 mA | 400 V | 200 W | 200 W | 1 µs |
| PSMU-PRF-4-xx | 4 A | 400 V | 600 W | 1,600 W | 1 µs |
| PSMU-PRF-5-xx | 5 A | 200 V | 600 W | 900 W | 1 µs |
| PSMU-PRF-10-xx | 10 A | 200 V | 600 W | 1,350 W | 1 µs |
Real-World Applications
- LED, VSCEL and laser testing
- Power semiconductor characterization
- Automotive components
- Materials / resistive load testing
- High-power electronics validation
