Is Your Light Measurement Method Undervaluing Your LEDs?

This article was originally published in LEDs Magazine.

  • Heating effects alter luminous flux output and make it difficult to measure LED performance
  • Continuous Pulse measurements cause little junction/phosphor heating
  • Highly accurate and repeatable measurements that reduce the risk of undervaluing devices
  • Don’t leave money on the table! More accurate/repeatable measurements result in higher yields/capacity

The LED industry is facing a roadblock that threatens its continued rapid evolution. Heating effects are making it nearly impossible to accurately measure the performance of new LEDs. Measurements that were simple to perform with older LEDs are problematic or impossible to achieve with today’s high-efficacy LEDs because the LED junction and phosphors heat significantly during the measurement. Even when the heating is minimal, heated junctions and phosphors produce less light, and the light that is emitted is shifted in peak wavelength. This fundamental measurement challenge complicates the R&D task, by making it problematic to exchange measurement data, and by making it difficult to accurately rate LEDs at their true output.

L vs I Sweep of AlGaInP LED - Nominal L-I_50ms Single Pulse Sweep_DC Sweep
L vs I sweep of Osram LY W5SM AlGaInP LED showing droop caused by junction heating.

Both the Illuminating Engineering Society of North America (IESNA) and the Commission International De’Leclairage (CIE) have recognized this issue. In 2014, the IESNA published LM-85, Laboratory Method for Electrical and Photometric Measurements of High Power LEDs. LM-85 lists three different techniques for powering the LED; the techniques use DC, single pulse, or continuously pulsed current. All three tie measurements to a specific junction temperature. Tying measurements to junction temperature is a key step to assure measurements are reproducible when performed by different laboratories or when performed using different equipment. Along the same lines, the CIE is presently developing TC2-63, Optical Measurement of High-Power LEDs, and TC 2-64, High Speed Testing Methods for LEDS. The CIE standards also include multiple techniques that anchor a measurement to junction temperature.

LM-85 improves the industry’s longstanding DC and Single Pulse measurements with adjustment procedures that can compensate for the temperature rise that occurs during the measurement. However, these adjustments rely on thermal control platforms and precise timing systems that are not part of the equipment in most labs. Without this high-end equipment, measurements at a specified junction temperature may not be possible or measurement repeatability may be poor.

Learn more about measurement repeatability by watching this webinar >

To overcome the measurement roadblock and ensure measurement repeatability, the industry should look beyond adjusting for heating, to measurement techniques that actually minimize heating. LM-85’s third method, Continuous Pulse method does this. It uses low duty cycle pulse trains to power the LED during the measurement. This approach is conceptually simple, but it also relies on high-fidelity current pulses to produce accurate measurements. This article presents the best practices necessary to successfully apply the Continuous Pulse technique to make accurate LED measurements.

The Problem: LED Heating

The commonly used LED testing methods employ DC or DC-like current pulses to power the LED. Low efficacy LEDs are easily measured this way, however modern LEDs operate at a much higher power per square millimeter. At power-on, these devices heat quickly and their larger physical structures take many milliseconds to come to thermal equilibrium. At that point they need to transfer a significant amount of energy to their surroundings to remain at equilibrium. This increases the demands on the thermal transfer materials and structures used to convey the heat away from the LED. If these structures are incomplete – for example in LEDs being binned at the wafer level – the heat builds up in the LED and the junction temperature increases.

Flux output drop occurs because the LED’s efficiency decreases as its semiconductor junction temperature increases. This is due to temperature-dependent semiconductor properties such as non-radiative recombination and carrier loss. This efficiency drop can change the LED’s optical output dramatically – a typical white LED output may decline 20% for a 50 °C rise in junction temperature; part of this decrease is also due to a drop in phosphor conversion efficiency at high temperatures. The decline is even greater for aluminum gallium indium phosphide (AlGaInP) LEDs (red – yellow) and aluminum gallium arsenide (AlGaAs) infrared LEDs.

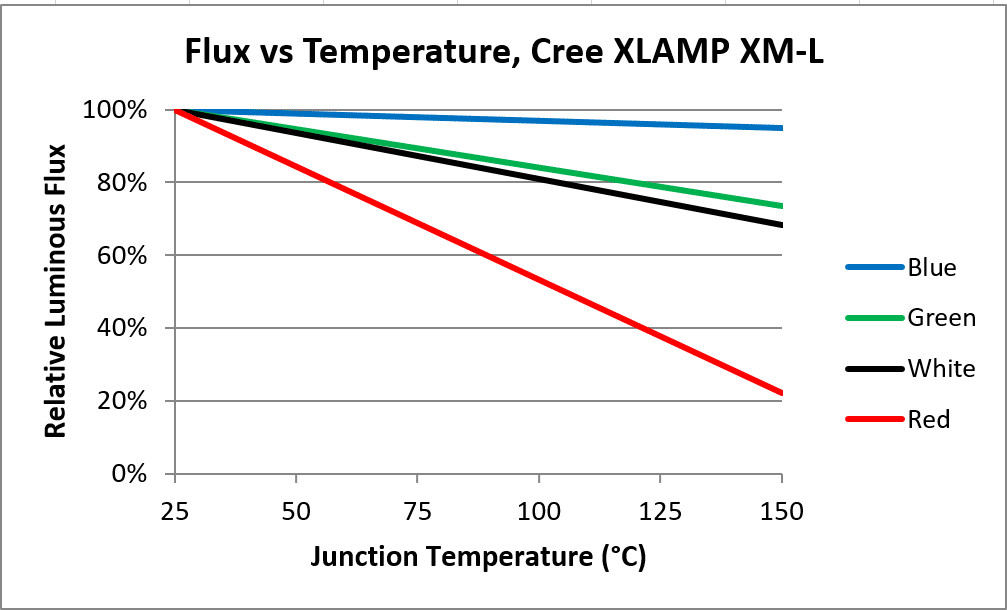

Flux vs Temperature - Cree XLAMP XM-L
LED efficiency declines as junction temperature increases; AlGaInP and AlGaAs LEDs experience the greatest drops Source: Cree XLAMP XM-L datasheet.

The efficiency-drop-induced change affects some measurements more than others. Single point measurements, such as total luminous flux measurements, experience a predictable percentage error, proportional to the temperature increase. This fixed error is often ignored, but rigorous labs will account for it with a correction factor based upon the average temperature rise, for example, using LM-85’s correction technique. These correction techniques work well, however precise measurement timing is essential for repeatable measurements. In addition, this approach only works if the final junction temperature is not beyond the absolute maximum for the LED.

For multiple point measurements, such as L-I-V sweeps, the drop-induced change is not easy to predict. This is because the temperature rise for any point in the sweep is not just a function of that point’s test conditions; it also depends on the temperature rise of previous measurements and the time delay between measurements. This complexity means labs experience two significant measurement errors: 1) sweeps that should be linear instead exhibit an overall droop, and 2) successive measurements are not repeatable due to software or firmware-induced variations in the delay between points.

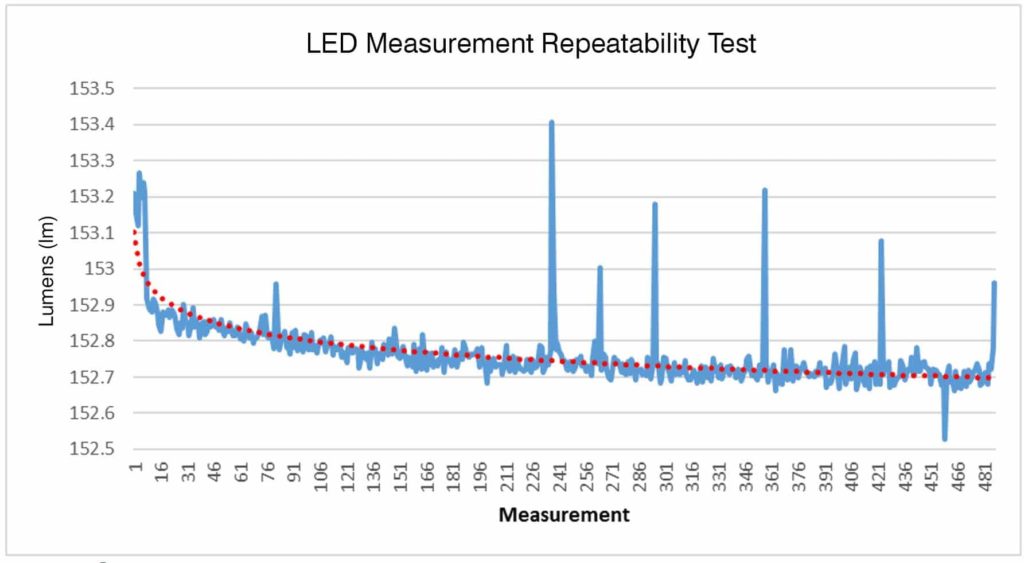

LED Measurement Repeatability Test
LED flux measurement deviations caused by firmware-induced timing uncertainty in source-measure instrument. Actual trend line in red.

Vektrex Research Showed Usability Issues with LM-85 DC and Single Pulse Adjustment Techniques

Shortly after the introduction of LM-85, researchers at the National Institute of Standards (NIST) and Vektrex implemented LED tests using LM-85’s techniques. Both NIST and Vektrex obtained good measurements using the techniques. However, the DC and Single Pulse adjustment techniques were sometimes difficult or impractical to implement. They required long thermal stabilization times or they required the LED mount to be maintained at temperatures close to or below 0 °C. At such low temperatures special purge gasses are needed to prevent condensation and/or ice buildup in the test apparatus. Finally, the extrapolations needed for temperature adjustment required high-speed data acquisition equipment and the extrapolations were computationally complex.

Continuous Pulse – The Low Heating Solution

Vektrex found the third LM-85 measurement technique, Continuous Pulse, did not have these shortcomings. Continuous Pulse uses pulses in the microsecond range at a low duty cycle to power the LED. LM-85 recommends 50 µs. These short pulses produce little junction heating and little heat is transferred into the device – so little that equilibrium can be maintained without temperature control. Continuous pulse measurements are also computationally simple – no temperature extrapolations are needed. Measurements can be made with just a few pulses or a single pulse if the sphere is small, so this technique is suitable for production test applications.

To see a comparison of Continuous Pulse, Single Pulse, and DC method, watch this webinar >

But Continuous Pulse measurements have a fundamental difference from Single Pulse and DC measurements: the LED current transitions off and on during the spectrometer’s integration time. Thus the spectrometer light measurement includes light gathered when the LED is on, when it is off, and importantly, while it is transitioning between off and on. This characteristic leads to pulse timing-based measurement errors that are unique to the Continuous Pulse technique. Before the Continuous Pulse technique can be used for practical measurements, these errors have to be quantified and minimized.

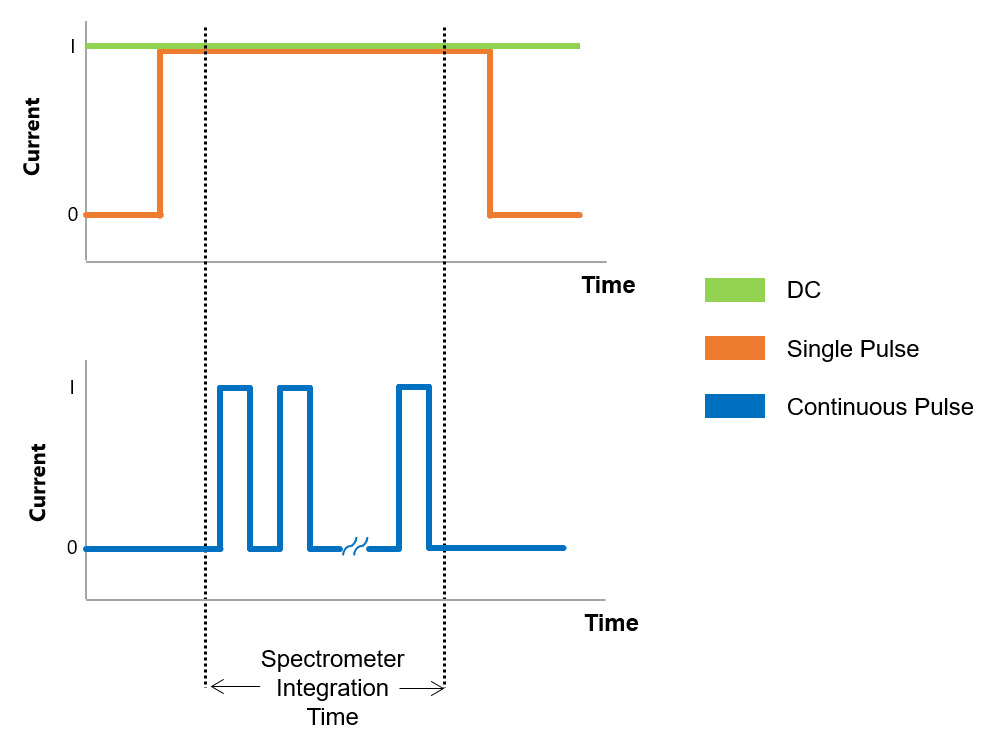

Spectrometer Int Time
In LM-85’s Continuous Pulse technique, the LED drive current transitions during the spectrometer integration time.

Continuous Pulse Error Source Originate From Instrument Timing Accuracy

To understand these timing errors consider an ideal Continuous Pulse flux measurement. Nominally, no light is collected when the LED is off, so the spectrometer will report a flux value equal to the on-time flux reading multiplied by the light-on time to light-off time ratio (duty cycle). Since the duty cycle is kept low to reduce heating, the spectrometer’s readings must be adjusted by the reciprocal of the duty cycle to obtain the true flux value.

Φtrue=Φspectrometer*tintegration-time/tlight-on

Note that the light-on time to light-off time ratio refers to the light seen by the spectrometer during its integration time. If the integration time is exactly equal to the current source pulsing period, this ratio is the same as the current source duty cycle. If not, then the ratio must be calculated with knowledge of the width of the light pulses seen by the spectrometer and the overall integration time.

The first Continuous Pulse error has to do with pulse width. Most current source instruments specify accuracy for the pulses they produce. For example, one popular source-measure instrument specifies a programming accuracy of ±5 µs and a pulse width jitter of ±2 µs. If this instrument is used to make a Continuous Pulse measurement using 100 µs pulses, the light-on time could be as low as 93 µs or as high as 107 µs. This translates to a ±7% flux error. This error drops to 3.5% if the pulse width is increased to 200 µs and it decreases further at even wider pulses.

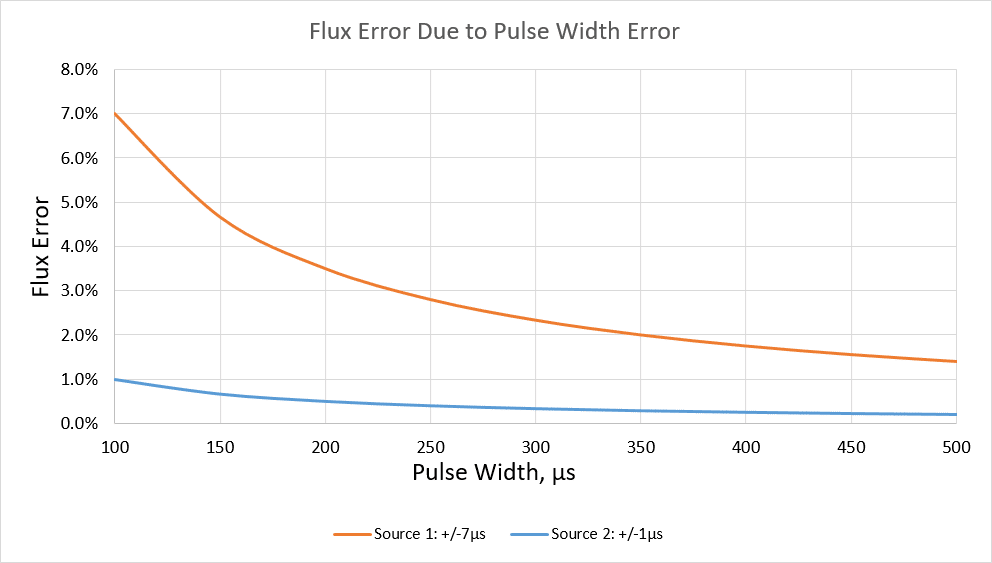

flux error due to pulse width error
Flux error due to pulse width error vs current pulse width, when using Continuous Pulse technique.
Source 1: Source-Measure Instrument, Source 2: Performance Pulsed Current Source.

Rise time error, the second pulse timing error source, is more subtle but still significant. Pulsed current sources list a rise time, normally specified as the time required for the current to transition from 10% to 90%. Similarly, the fall time is the time to transition from 90% to 10%. Many factors influence rise/fall time, including the impedance of the LED, the cabling connecting the LED to the source and the source’s amplifier design. If LEDs had a perfectly linear L vs I performance, rise time would not matter. But actual LEDs are more efficient at low currents. This characteristic means the sloped pulse sides contribute more flux than they should to the measurement. Like the pulse width error, rise time error increases with decreasing pulse width.

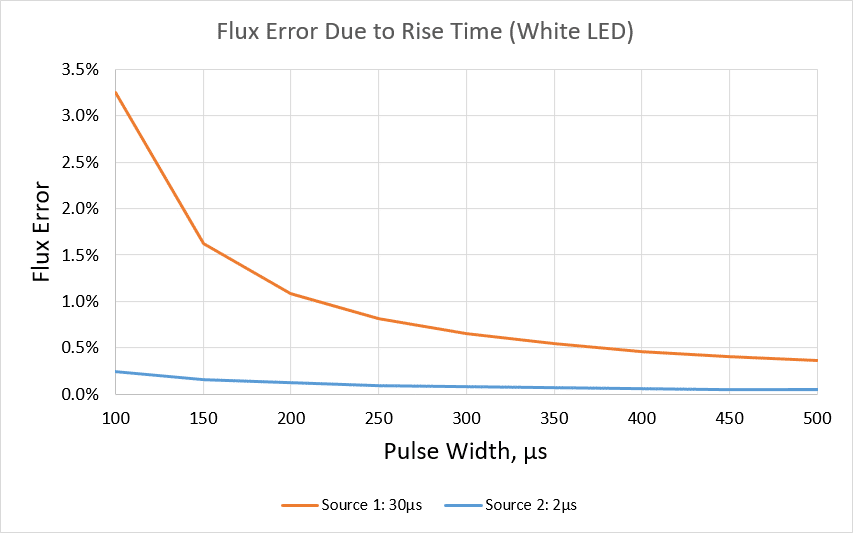

flux error due to rise time with white LED
Flux error due to rise time is greater at short pulse widths. Source 1: Source-Measure Instrument, Source 2: Performance Pulsed Current Source.

These graphs show that the timing accuracy of traditional source-measure instruments translates to high flux error values – over 10% for a typical instrument – when used for 100 µs Continuous Pulse measurements. The error declines at longer pulse widths but longer pulses produce more heating, negating the benefit of the Continuous Pulse technique.

Source-measure instruments fall short in this application because they are designed for general purpose parametric measurements. The current regulation elements are typically under software or firmware control. Because of this, the instrument timing has a large uncertainty, sometimes as much as 10% of the pulse width. Amplifier characteristics are also designed to minimize overshoot under any load condition. The resulting slow rise and fall times (30-500 µs) are not ideal for Continuous Pulse measurements.

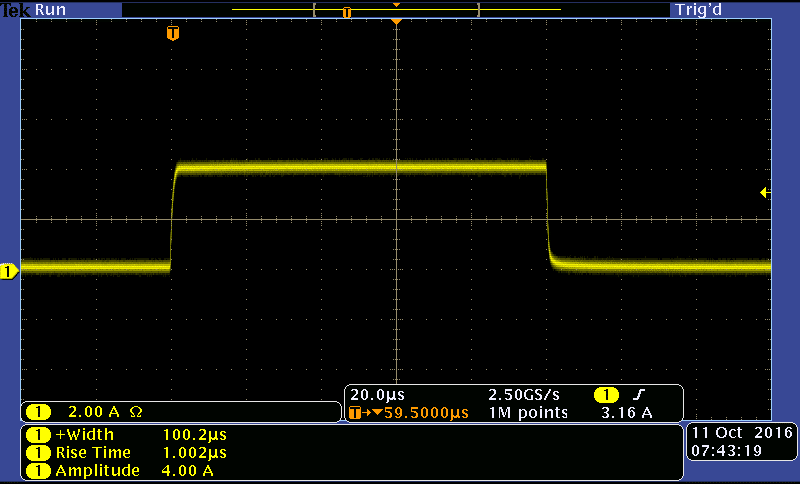

4A_42.6V_PRF_1µs_scopeshot
Near-ideal 100 µs current pulse produced by SpikeSafe Performance Precision Pulsed current source

Continuous Pulse Overcomes Roadblock, Allowing You to Correctly Value Your LEDs

To overcome the measurement roadblock, the LED industry must transition to test techniques that minimize junction and phosphor heating. Recent improvements to the popular DC and Single Pulse methods are not enough. While the improvements compensate for the junction heating that occurs during a measurement, many high-efficacy LEDs heat too quickly to be testable. Even with the errors identified, LM-85’s straightforward Continuous Pulse method minimizes heating and holds the best promise for delivering accurate, repeatable measurements.

References

  1. Cree® XLamp® XM-L Color LEDs Product family data sheet, CLD-DS58 Rev 5
  2. Analysis of the Temperature Dependence of Phosphor Conversion Efficiency in White Light-Emitting Diodes; Guen-Hwan Ryu and Han-Youl Ryu, Department of Physics, Inha University, Incheon 402-751, Korea; Journal of the Optical Society of Korea Vol. 19, No. 3, June 2015, pp. 311-31
  3. How Are LEDS Affected By Heat, NLPIP Lighting Answers; Volume 7, Issue 3, May 2003; Lighting Resource Center, Rensselaer Polytechnic Institute, Troy, NY
  4. Simple Test Reveals the Origin of Efficiency Droop; LED Journal Guest Blog, Oct 12, 2015 10:08 PM; By Joachim Piprek, NUSOD Institute LLC
  5. Overview Of Measurement Standards For Solid State Lighting, 2016 CIE-USNC Annual meeting, Oct 31 2016, Yoshi Ohno, Director of CIE Division 2 Member of ANSI C78-09, IESNA TPC Optical Technology Division National Institute of Standards and Technology Gaithersburg, Maryland USA
  6. IES LM-85-14, Approved Method: Electrical and Photometric Measurements of High-Power LEDs, Illuminating Engineering Society of North America, 2014
  7. IES LM-85 Homogenizes High-Power LED Measurement and Characterization, LEDs Magazine, Feb 2014, Jianzhong Jiao, Osram Opto Semiconductors
  8. Implementation and Comparison of the LM-85 Measurement Methods, 2014 CIE-USNC Annual meeting, Oct 7 2014, Jeff Hulett, Vektrex
  9. Optimizing Continuous Pulse LED Measurements For Maximum Accuracy, 2016 CIE-USNC Annual meeting, Oct 31 2016, Jeff Hulett, Vektrex
  10. Improved Photometric Testing for High-Power LEDs, Photonics Spectra, May 2015, Jeff Hulett, Vektrex
  11. 2651A 50A, High Power System SourceMeter® SMU Instrument Datasheet, Keithley
  12. 2461 SourceMeter ® SMU Instrument ,1000 Watts, 10 Amps Pulse, 7 Amps DC Datasheet, Keithley
  13. SpikeSafe 400 Precision Pulsed Current Source Specifications, Vektrex
